COUNTRY MANOR

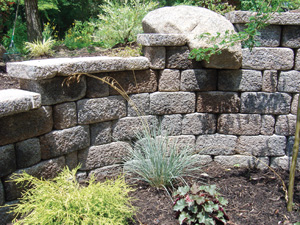

This dry-stacked, yet mechanically connected wall evokes the Old World charm of a mason-crafted wall. In a castle or home, these graceful curves, monumental columns and free-standing walls are all part of the charm of Country Manor from Keystone. Country Manor Units are available in several colour options.

Wall Variety

For a creative design option, units may occasionally be placed vertically in the wall to provide a break of horizontal lines. To span two, six-inch high courses, use the unit with the 12-inch length. Because the fiberglass pins do not interlock in this position, use an adhesive to fasten this unit in place. Be sure the unit above the 12-inch vertical unit spans beyond the six-inch width of the vertical unit, so each end of the vertical unit is covered with a horizontal unit.

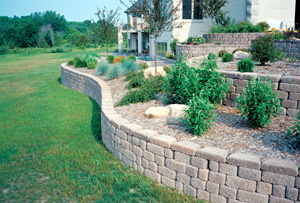

Curves

Curving walls add texture to a landscape, creating a circular center patio and separating it from planting areas. Convex (outward) and concave (inward) curves can be built in both the near-vertical and the one-inch set-back walls. Because the units are finished on both sides, Country Manor can be used for free standing walls. However, these should always be built in a vertical position, as well as, each course should be adhered to each other using an adhesive or mortal.
